SOLID FINGER JOINTED PANELS

Solid finger
jointed panels

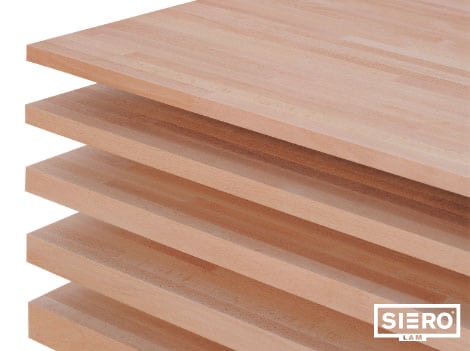

Solid finger joint panels are made up of wood lamellas consisting of finger jointed small pieces glued at the edge. With this system we obtain a very stable product (the internal tensions of the wood of some pieces are compensated with others), especially important in elements of large dimensions.

ADVANTAGES
  • Increased dimensional stability
  • High quality finish
  • Guaranteed moisture content
  • Minimal waste
  • Ready for immediate work
  • Minimal stock
  • Improved productivity
  • Large dimensions.
finger-joint-panel-advantages

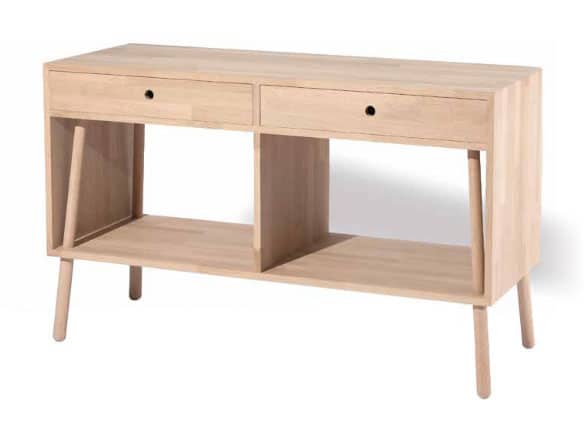

Collection LivingBlock sideboard by www.mad-lab.com
Available woods and dimensions
DIMENSIONS
WOOD SPECIES
LENGHT (mm)WIDTH (mm)THICKNESS (mm)
161926324252

٠ Sweet chestnut
٠ European oak
٠ European ash
٠ White Beech and Steamed beech
٠ Iberian walnut
٠ Maple ٠ Cherry
٠ Iroko ٠ Sapelli
٠ Teak ٠ Black Acacia

24401220
3300
4500
(*) 20 ± 2mm lamella width
DIMENSIONS
WOOD SPECIES
LENGTH (mm)WIDTH (mm)THICKNESS (mm)
193242

٠ Sweet chestnut
٠ European oak
٠ European ash
٠ Steamed beech
٠Iberian walnut
٠ Iroko ٠ Sapelli
٠ Teak ٠ Black Acacia

244012201
3300
4500
33006722
(*) Lamella width 42 ± 2mm. (1) Available from stock for sweet chestnut, European oak, iroko, and steamed beech. (2) Rounded edge on request.
Species
sweet-chestnut-finger-joint-panel

Sweet chestnut

Lamella width 42 mm

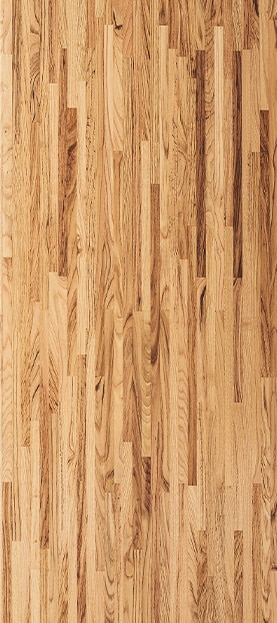

Tobacco sweet Chestnut finger joint

“Tobacco” sweet chestnut
Lamella width 20 mm

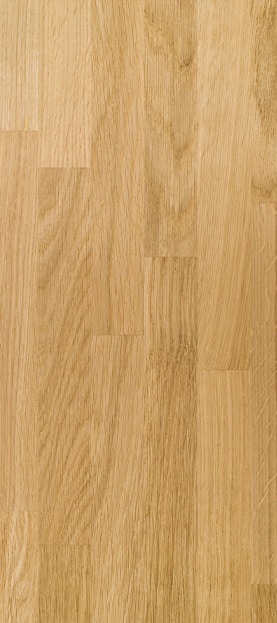

fingerjoint European oak species

European oak
Lamella width 42 mm

White Beech finger joint species

Steamed beech
Lamella width 42 mm

Black Acacia finger joint species
Black acacia Lamella width 42 mm

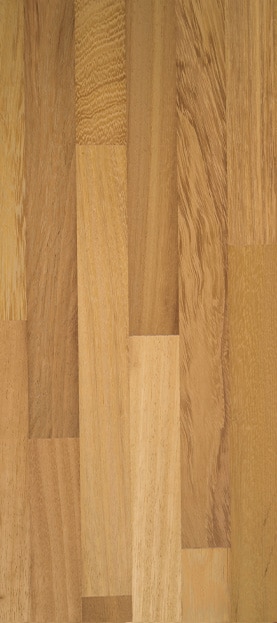

Iroko finger joint panel

Iroko
Lamella width 42 mm

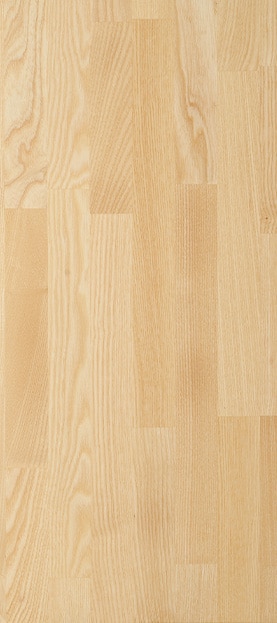

European ash finger joint panel

European ash
Lamella width 42 mm

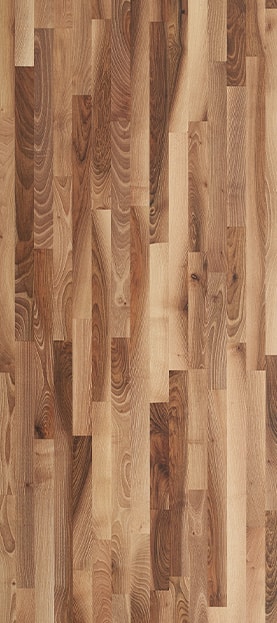

Iberian walnut finger-joint panel

Iberian walnut
Lamella width 42 mm

Qualities

A/B STANDARD:
Other qualities available on request.

Class A: Occasionally small healthy knots.
Class B: Small sapwood wedges (sweet chestnut, oak and acacia), and small knots are permitted.
Class C: Sapwood, healthy knots and small black knots are allowed.

Technical properties of the product
Glue type

GLUE TYPE
D3 according to EN 204

Formaldehyde

FORMALDEHYDE
Class E1 according to standard UNE EN 13986

Moisture content

MOISTURE CONTENT
10 ± 2%

Finger Joint Properties

FINGER-JOINT*
On the edge, not visible on the panel face

Sanding Properties

SANDING
120 grain

Packaging

PACKAGING
Individual plastic film
